    Flexible Hose For Fancoil Unit

  FACOLEX





FACOLEX flexible hoses are made of EPDM tube braided with stainless steel wire. They are applicable with water exclusively. FACOLEX is the most suitable connecting hoses for fancoil units and sanitary equipment. FACOLEX is very attractive with its excellent performance and outstanding reliability where a similar conventional one is not comparable with. Other important features of FACOLEX are



• Reduction of man-hours for piping

• Hot-water resistance and pressure resistance

• Flexion fatigue and potential difference corrosion

• Thermal insulation

• Two kinds of metal fitting

Application

Absorption of pipe core displacement, vibration absorption for equipment

Installation

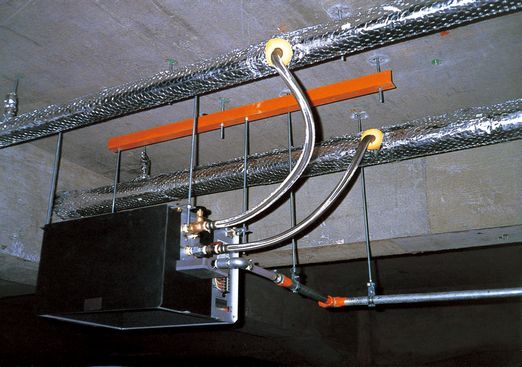

Fan coils and sanitary equipment

Specifications

Nominal diameter: 15A - 32A
Maximum working pressure: 2.0MPa(20.4kgf/cm²)
Operating temperature: -20°C - 90°C



    Feature

Reduce piping works
The minimum bending radius is small yet flexible, so from main pipe to fan coil it can be connected with one piece. Reduce piping labor significantly so result in less fabrication time and labor.
Heat-proof and pressure-proof
Heat-resistant rubber and strong SUS braid enhance hot water resistance and pressure resistance.
Bending fatigue and potential difference corrosion
Flexible rubber tube removes defects such as bending fatigue, potential difference corrosion, etc..
Heat insulated
Heat insulation material has independent air bubble structure. Effective in heat insulation, and excellent in weather-resistance and self-fire-extinguishing.

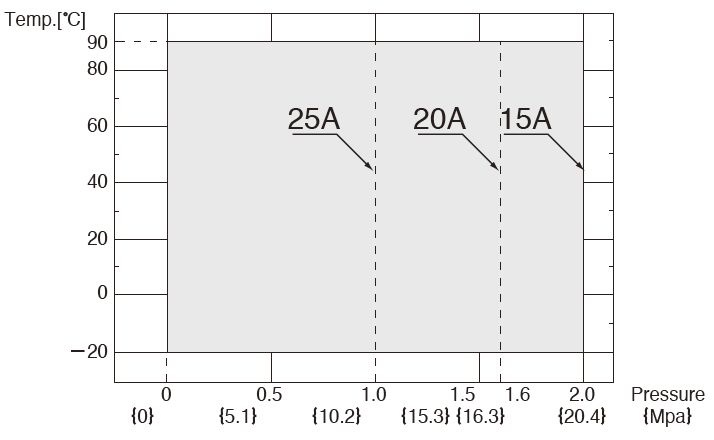

    Application (Pressure & Temperature)

 ● Check if maximum pressure and temperature are within the range of use.




   Operating Conditions
Flexible Hose For Fancoil Unit FACOLEX : FACOLEX flexible hoses are made of EPDM tube braided with stainless steel wire. They are applicable with water exclusively. FACOLEX is the most suitable connecting hoses for fancoil units and sanitary equipment. FACOLEX is very attractive with its excellent performance and outstanding reliability where a similar conventional one is not comparable with. Other important features of FACOLEX are

Remark : FACOLEX is not applicable to oil.

Nominal Dia.



 　Max.Operating Pressure
(MPa)
15   2.0
20   1.6
25

1.0

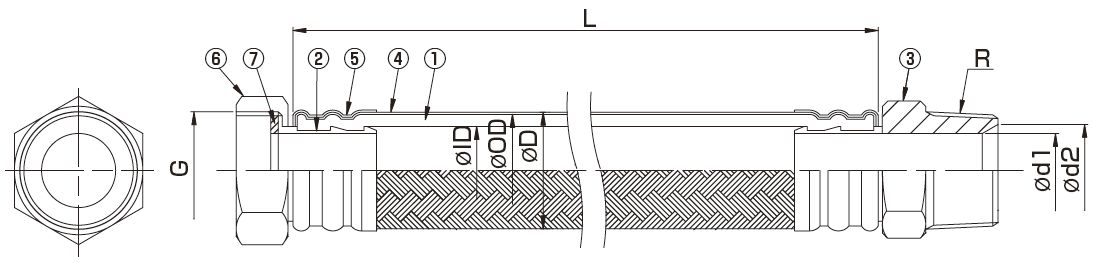

   Structure



Flexible Hose For Fancoil Unit FACOLEX : FACOLEX flexible hoses are made of EPDM tube braided with stainless steel wire. They are applicable with water exclusively. FACOLEX is the most suitable connecting hoses for fancoil units and sanitary equipment. FACOLEX is very attractive with its excellent performance and outstanding reliability where a similar conventional one is not comparable with. Other important features of FACOLEX are



No.

 　Parts 　Material
1  Tube EPDM
2  Sleeve BsBM / BC6
3  Male thread

BsBM / BC6
4  Braid

SUS304
5  Collar SUS304
6  Cap Nut BsBM / BC6
7  Gasket Non-asbestos


● Standard end connections: One end is cap nut (parallel thread) with packing, and the other end is outer thread (tapered male thread).
● If both ends need tapered male thread, specify the product that is with adaptor (optional).

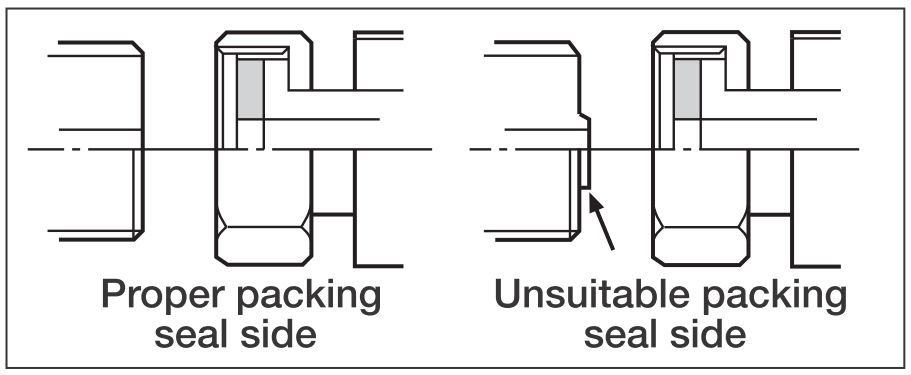

● For packing, use exclusive use packing attached.
● Both ends can be changed to female thread x female thread.
● Body ends cannot be changed to male thread x male thread.




   Dimensions and Allowable Movements
Nominal
Dia. 		 Inner
Dia.
φd1 		 Inner
Dia.
φd2 		 Outer
Dia.
φD 		 Tube Dimension End
Connection
G(f)xR(m)		 Min.
Bending
Radius

Length
(Lor OAL)


Inner Dia.
φID		 Outer Dia.
φOD
 15  10  12  22   14  21  G1/2 x R1/2 80 200,300,500,
800,1000,1500
20 15  17  28   19 27 G3/4 x R3/4 100
25 20  25  35   25 34 G1 x R1 125


 For the length other than mentioned above, please consult us.

    Face-to-Face Dimension

Standard face-to-face dimensions are 200L, 300L, 500L, 1000L. Specify when placing orders.
Other special face-to-face dimensions can also be manufactured.




    Connection

 Flexible Hose For Fancoil Unit FACOLEX : FACOLEX flexible hoses are made of EPDM tube braided with stainless steel wire. They are applicable with water exclusively. FACOLEX is the most suitable connecting hoses for fancoil units and sanitary equipment. FACOLEX is very attractive with its excellent performance and outstanding reliability where a similar conventional one is not comparable with. Other important features of FACOLEX are

 Flexible Hose For Fancoil Unit FACOLEX : FACOLEX flexible hoses are made of EPDM tube braided with stainless steel wire. They are applicable with water exclusively. FACOLEX is the most suitable connecting hoses for fancoil units and sanitary equipment. FACOLEX is very attractive with its excellent performance and outstanding reliability where a similar conventional one is not comparable with. Other important features of FACOLEX are

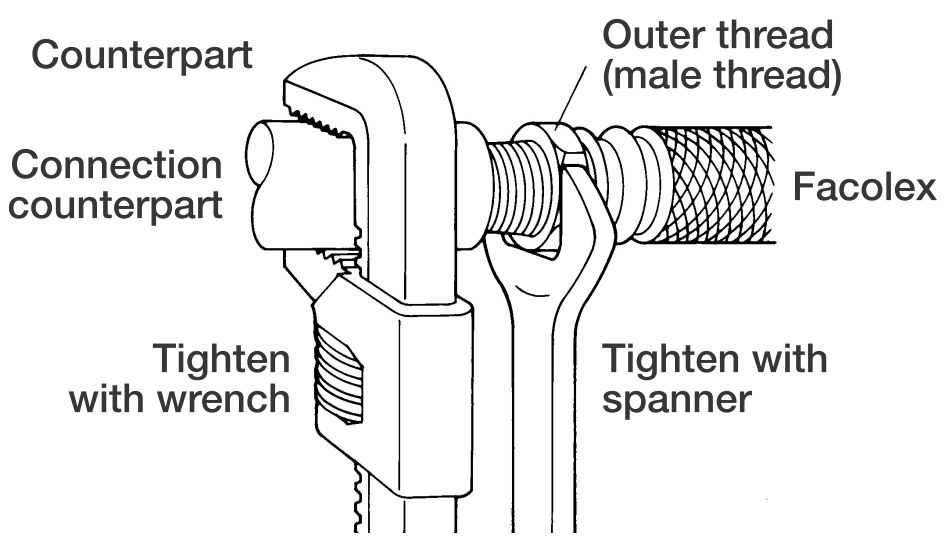

1. Outer thread (male thread side)
First wrap the seal tape (or sealant) around the male thread side and check if the counter thread is free from defects and smooth, tighten the outer thread by hand to the possible number of threads, and then use spanner to tighten while using wrench to hold the counter side. Once tightened, in case of removing or putting back, clean properly for the thread part, and be sure to change the seal tape (or sealant) before tightening.

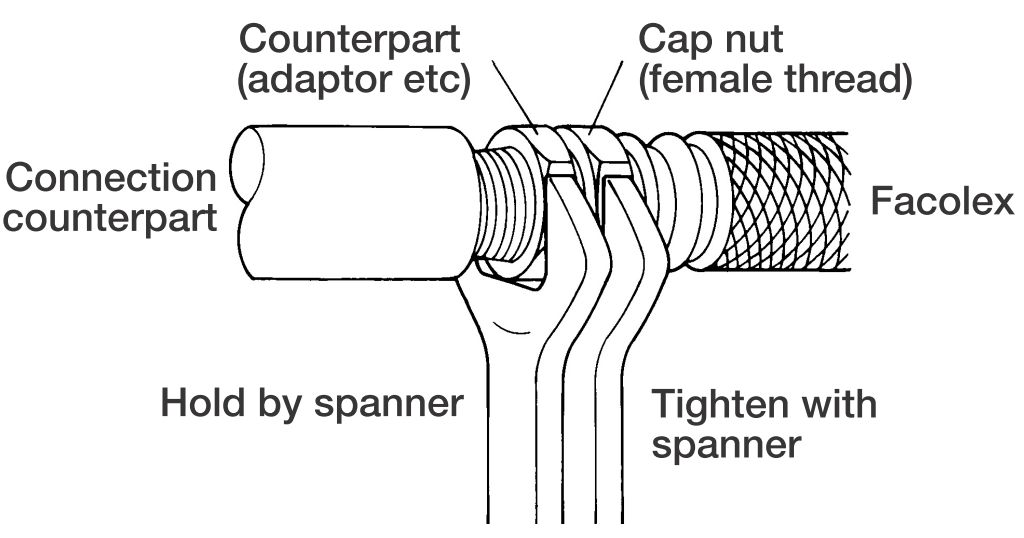

2. Parallel thread (female thread side)
Check first if outer thread – the cap nut counter thread - is free from defects, and the seat for receiving packing is smooth. Insert the packing, tighten the cap nut by hand to the possible number of threads, then use spanner to tighten while using spanner to hold the counter side (adaptor, etc.) and not twist the hose. Once tightened, in case of removing or putting back, be sure to change the seal tape (or sealant) before tightening.  Do not use other packing not provided by us. It may cause water leak and other problems. When you are short of packing during fabrication, please contact us.







 Flexible Hose For Fancoil Unit FACOLEX : FACOLEX flexible hoses are made of EPDM tube braided with stainless steel wire. They are applicable with water exclusively. FACOLEX is the most suitable connecting hoses for fancoil units and sanitary equipment. FACOLEX is very attractive with its excellent performance and outstanding reliability where a similar conventional one is not comparable with. Other important features of FACOLEX are

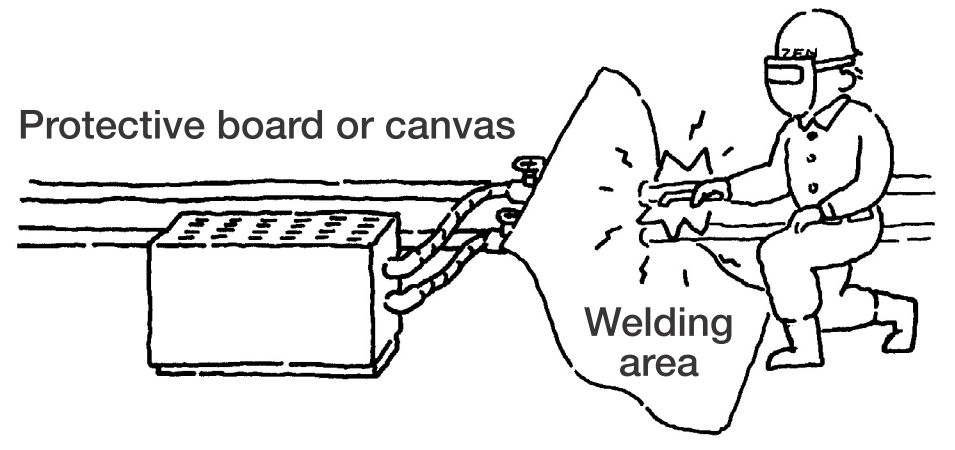

 •The body of Facolex is made of rubber. It should not be used close to heat source. After installation, when welding or fusing is performed near the product, the product should be covered with protection against sparks.  If welding sparks may cause damage, the product should be removed.

 Flexible Hose For Fancoil Unit FACOLEX : FACOLEX flexible hoses are made of EPDM tube braided with stainless steel wire. They are applicable with water exclusively. FACOLEX is the most suitable connecting hoses for fancoil units and sanitary equipment. FACOLEX is very attractive with its excellent performance and outstanding reliability where a similar conventional one is not comparable with. Other important features of FACOLEX are
