Feature

Clean = Pure
Virgin fluoropolymer material is free of any impurities or soluble substance such as stabilizers, antioxidants or carbon. It is considered as one of the most hygenic material.

Compact Design
A short face to face dimension enable compact design of the pipe.

Bellows
Unique forming method enable an even & uniform thickness & shape of the bellows.

Negative pressure
Depending on operating temperature, it is able to be used up to minus 0.099MPa, (minus 750mmHg)

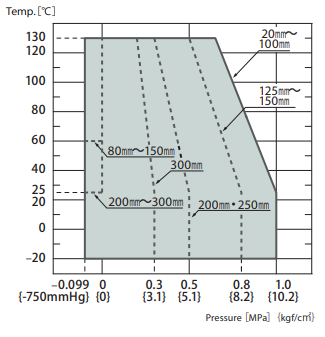

Operating Conditions and Performance

●Use after confirmation that the maximum operation pressure and maximum service temperature are within the operation range.

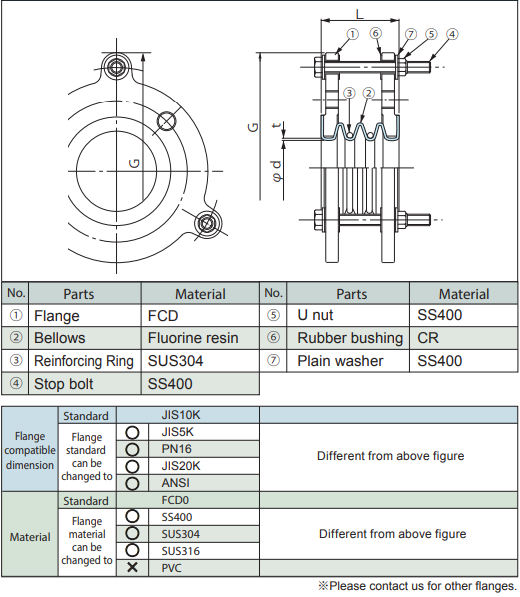

Structure

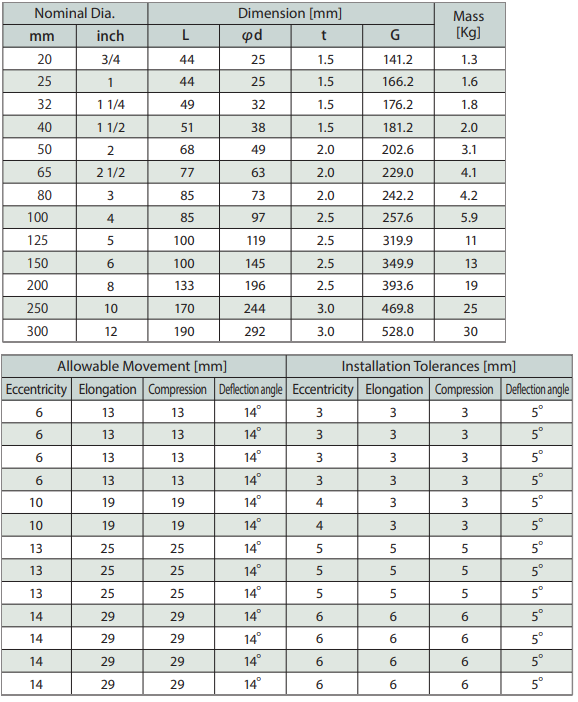

Dimensions and Allowable Movements

● Mass is the data when material is FCD,and flange is JIS10K flange.
● Use a joint within the range of allowable displacement.
● Fixing allowable dimension is included in allowable displacement
　(allowable displacement = fixing time displacement + operation displacement).
● Each displacement in chart are data of single displacement, so for multiple displacements,
　correction is necessary .For correction method, refer to “Attention for handling or “TOZEN HP”.
● Referring to “fixing bolt dimension table” , and use fixing bolt. Nut is not necessary.
　(When companion flange is JIS10K, material is SS400,and when plain washer and gasket are not used.)
