Products Line Up > PTFE Joint

POLIFLEX SOFT

Corrugated type



General Teflon ® flexible hose with excellent flexibility by means of a corrugating process



• Flexible

• Wide array of products

Application

Absorption of eccentricity, absorption for repetitively moving elements, vibration absorption

Installation

Chemical lines, hoses for transfer of food and chemicals, load cells and pumps

Specifications

Nominal diameter: 15A - 100A
Maximum working pressure: 1.2MPa(12.2kgf/cm²)
Operating temperature: -20°C - 100°C

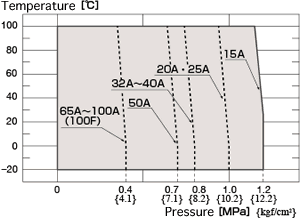

Range of use

●100F・100J



●50F・50J

Select
Select and click catalogue request button, and the page you checked can be all downloaded.
