Socket Welded Type
Stainless Steel Flexible Hose

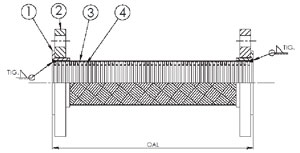

![Fig.](/up/image/sf6700_img(1).jpg)
Item |
Part Name |
Material |
Qty. |
1 |
Lap Ring |
SUS304 |
2 |
2 |
Standard Flange |
SS400 |
2 |
3 |
Wire Braid |
SUS304 |
1 |
4 |
Flexible Tube |
SUS304 |
1 |
Max. Working Temperature : |
250°C |
Max. Working Pressure : |
10 bar |
Bursting Pressure : |
40 bar |
Applicable Fluid : |
Water, Hot Water, Oil, Steam, Gas, Air, Chemicals, etc. |
• All contacting fluid parts are stainless steel.
• Longer effective length enables higher lateral movement.
• Flange drillings comply with JIS10K, ANSI150, and PN10.
• Please consult us for other material, pressure, temperature and movement designs.
SPECIFICATION
Size |
Min. Bending Radius (mm.) |
Lateral Movement |
Ineffective Length (mm.) |
300mm. OAL |
400mm. OAL |
500mm. OAL |
15A |
190 |
50 |
72 |
94 |
36 |
20A |
200 |
48 |
71 |
94 |
36
|
25A |
240 |
48 |
71 |
98 |
36 |
32A |
300 |
41 |
61 |
82 |
40 |
40A |
360 |
39 |
62 |
84 |
41 |
50A |
450 |
34 |
65 |
76 |
41 |
65A |
490 |
28 |
51 |
72 |
50 |
80A |
600 |
23 |
45 |
66 |
54 |
100A |
800 |
16 |
36 |
57 |
54 |
